Plasti-Paste™
Achetez Smooth-On chez FormX
Smooth-On est l'un des principaux fabricants mondiaux de matériaux de modélisation 3D tels que les matériaux de fabrication de moules, de coulée et d'effets spéciaux, mais aussi les résines de coulée industrielles, les adhésifs et les équipements. FormX est le principal distributeur des produits Smooth-On en Europe.
Plasti-Paste™ est une résine fibreuse à deux composants conçue pour une application sur une surface verticale. La partie A est un liquide et la partie B est une pâte. Le rapport de mélange est de 1A: 3B en volume (41A: 100B en poids). Il n'a pas d'odeur et sa durée de vie en pot est de 8 à 10 minutes en fonction de la masse. Le temps de démoulage (pouvant être manipulé) est d’environ 90 minutes, selon la masse.
Plasti-Paste™ maintient une surface verticale sans affaissement et durcit en un plastique solide, durable et léger. Convient comme moule mère / coque de support (renforce la forme du moule en caoutchouc lors de la coulée) ou comme matériau de laminage. Peut être pigmenté avec les teintes So-Strong® de Smooth-On. Ajoutez du Cabosil ou un autre produit de remplissage comme diluant ou pour obtenir des effets spéciaux.
- Convient pour les moules de soutien (chappes) solides et légers.
- Convient comme couche résistante derrière un gelcoat Shell Shock.
- Convient pour la conception de produits finis.
Rapport de mélange en poids 41A:100B en volume 1A:3B - durée de vie en pot 10 minutes - Couleur Blanc Cassé - temps de durcissement 90 minutes Dureté Shore 70 D- Elongation@rupture 1.5%

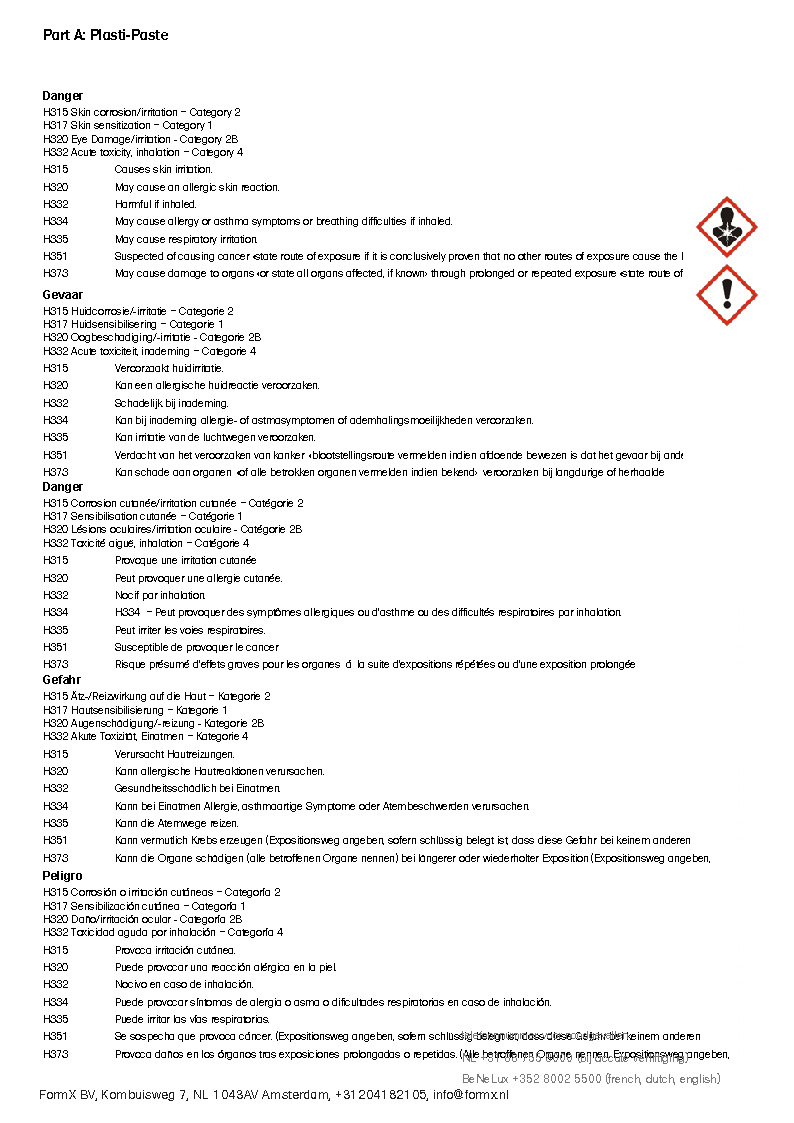

- Lisez les informations de sécurité cliquez sur l'image
- Lea la etiqueta de información de seguridad. Haga clic en la imagen
- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.
- Lees het veiligheidsinformatie label. Klik op de afbeelding.
- Read the safety information label. Click on the image
Produits Plasti Paste
Preparation – Materials should be stored and used in at room temperature 23° C. This product has a limited shelf life and should be used as soon as possible. Mixing should be done in a wellventilated area. Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. If making a 2 or more piece mother mold, apply appropriate shim apparatus to rubber mold exterior.
Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.
Applying A Release Agent – This product is adhesive and will bond to many surfaces. A sealer followed by a release agent is necessary to facilitate demolding when applying as a mother mold over a cured mold rubber. Use Sonite™ Wax followed by a coating of Universal™ Mold Release or Ease Release 200 release agent. A liberal coat of release agent should be applied onto all surfaces that will contact the plastic. You can also apply aluminum foil as a barrier over the surface followed by an application of Mold Release agent.
PRE-MIX Part B Before You Start – Part B is a thick paste containing oil that needs to be pre-mixed before being dispensed into measuring container. Dig deep to re-disperse oil & paste components that may have separated.
Measuring – The components of Plasti-Paste™ requires two different sized containers. The first will be used for measuring out amounts of Part A and Part B. The second should be large enough to contain both components and allow thorough mixing. IMPORTANT: Shelf life of Part A (Yellow Container) is reduced after opening. Remaining product should be used as soon as possible. XTEND-IT™ Dry Gas Blanket will prolong shelf life of unused liquid urethanes.
Mixing – Mix Ratio is 1A:3B by volume (41A:100B by weight). (Step 1) Fill measuring container to the top with Part B paste, making sure to eliminate any air voids. Level off the top of the container and remove any excess material. The paste should then be thoroughly emptied into a larger container that will act as your mixing container. Repeat As Necessary. (Step 2) Fill the measuring container to the top with Part A liquid and empty into mixing container. Mix thoroughly for 2-3 minutes making sure that you scrape the sides and bottom of the mixing container several times. Eliminate color streaks. If adding So-Strong™ color tints, pre-mix color with the Part B before adding Part A.
Mixing Large Batches - A ‘Turbine’ mechanical mixer attached to a power drill will make mixing large batches of material much easier.
IMPORTANT: Shelf life of product is reduced after opening. Remaining product should be used as soon as possible. Immediately replacing the lids on both containers after dispensing product will help prolong the shelf life of the unused product. XTEND-IT™ Dry Gas Blanket (available from form X) will significantly prolong the shelf life of unused liquid urethane products.
Applying – Mixed material thickens quickly and pot life is limited. Do not delay between mixing and applying. To increase working time, spread entire container contents over rubber mold surface and cover and spread mixture to uncovered areas. Apply uniformly with spatula over mold surface. Material will adhere to itself if additional layers are needed. Apply at least 1 cm thickness, making sure rubber mold is thoroughly covered. For maximum strength and heat resistance, 1.27 cm thickness is recommended. Large molds may require added thickness for support shell stability. Supports (wood or metal) may be embedded for added stability and handling. Prevent a jagged surface; Final layer of Plasti-Paste™ can be smoothed by wiping solvent (denatured alcohol or acetone) onto surface with gloved hand.
Making A Two Piece Shell – Plasti-Paste™ will bond to most surfaces and itself tenaciously. A barrier coat of paste wax followed by Universal™ Mold Release applied to all surfaces is necessary to prevent adhesion. Applying aluminum foil to the contours of all surfaces followed by Universal™ Mold Release will also prevent adhesion.
Curing – Plastic will be hot immediately following cure. Let cool to room temperature before handling. Material will develop handling strength and can be handled in about 90 minutes depending on mass. At this point, it is stable enough to demold, re-assemble over rubber mold and make a casting (hold 2 or more piece assemblies together with elastic bands, mold straps or bolts). Large sections should be bolted together to minimize distortion. Full strength develops in 24 hours.
Heat Resistance – Fully cured plastic with a minimum thickness of (1.27 cm) will resist temperatures up to 55°C. To improve heat resistance to 70°C, post cure material at 65°C for 16 hours.
If machining or sanding cured plastic, wear NIOSH approved mask to prevent inhalation of residual particles.
Storage – For best storage results, cast into rubber mold with a gypsum plaster or other dimensionally stable material, assemble mold inside the Plasti-Paste™ support shell and store assembled molds on a level surface indoors at room temperature in a dry place.
